DNN Operators (Small)

Author: Jie Wang (jiewang@cs.ucla.edu)

We demonstrate three operators using in the DNN, including: depth-wise convolution, point-wise convolution, and fully-connected layers. The design files can be found at ${AUTOSA_ROOT}/autosa_tests/dnn_ops. The testing environment is summarized in the table below.

Target FPGA

Xilinx Alveo U250

FPGA Synthesis Tools

Xilinx Vivado HLS 2019.2, Xilinx Vitis 2019.2

CPU

Intel(R) Xeon(R) CPU E5-2699 v3 @ 2.30GHz

Point-wise Convolution

In ${AUTOSA_ROOT}/autosa_tests/dnn_ops/kernel.h, uncomment the macro:

#define PC

Run the following command to generate a design with HLS host.

./autosa ./autosa_tests/dnn_ops/kernel.c \
--config=./autosa_config/autosa_config.json \
--target=autosa_hls_c \
--output-dir=./autosa.tmp/output \
--sa-sizes="{kernel[]->space_time[4];kernel[]->array_part[8,8,4,8];kernel[]->latency[4,4,4];kernel[]->simd[1,1,1,2]}" \
--simd-info=./autosa_tests/dnn_ops/pc_simd_info.json \
--host-serialize \
--no-reverse-order \
--hls

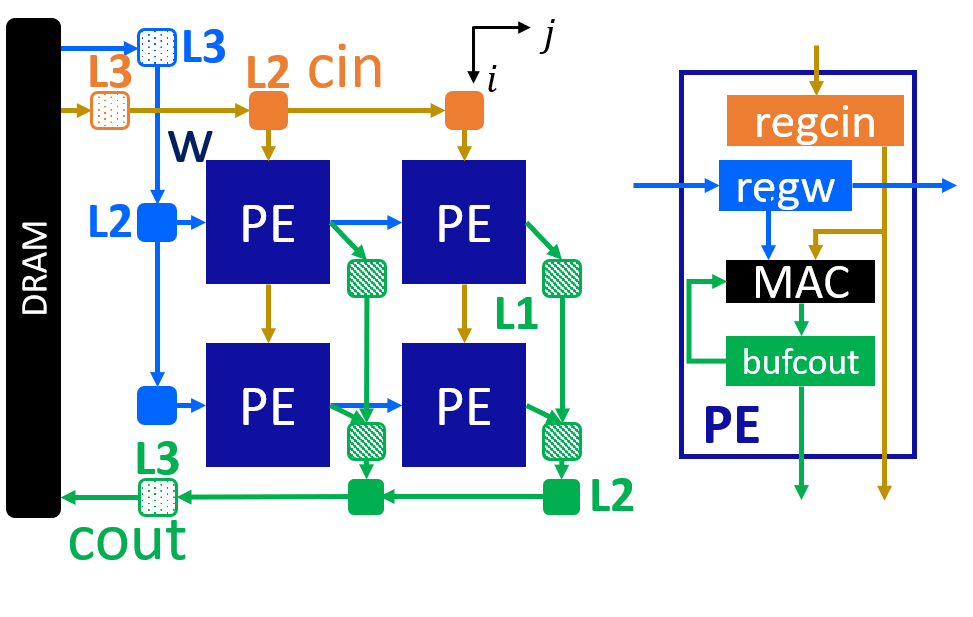

This leads to a 2x2 systolic array. The figure below shows the array architecture.

../_images/pconv.png

You will find all generated files under the directory ${AUTOSA_ROOT}/autosa.tmp/output/src. Copy the hls_script.tcl to the directory autosa.tmp/output.

cp ${AUTOSA_ROOT}/autosa_tests/dnn_ops/hls_script.tcl ${AUTOSA_ROOT}/autosa.tmp/output/

Run the TCL script to perform C simulation.

cd ${AUTOSA_ROOT}/autosa.tmp/output/
vivado_hls -f hls_script.tcl

You should see Passed printed out in your terminal showing that C simulation is performed successfully.

Depth-wise Convolution

In ${AUTOSA_ROOT}/autosa_tests/dnn_ops/kernel.h, uncomment the macro:

#define DC

Run the following command to generate a design with HLS host.

./autosa ./autosa_tests/dnn_ops/kernel.c \
--config=./autosa_config/autosa_config.json \
--target=autosa_hls_c \
--output-dir=./autosa.tmp/output \
--sa-sizes="{kernel[]->space_time[4];kernel[]->array_part[4,4,4,3];kernel[]->latency[1,2,1];kernel[]->simd[1,2,1,1]}" \
--simd-info=./autosa_tests/dnn_ops/dc_simd_info.json \
--host-serialize \
--no-reverse-order \
--simd-touch-space \
--hls

This leads to a 2x2 systolic array. The figure below shows the array architecture.

../_images/dconv.png

You will find all generated files under the directory ${AUTOSA_ROOT}/autosa.tmp/output/src. Copy the hls_script.tcl to the directory autosa.tmp/output.

cp ${AUTOSA_ROOT}/autosa_tests/dnn_ops/hls_script.tcl ${AUTOSA_ROOT}/autosa.tmp/output/

Run the TCL script to perform C simulation.

cd ${AUTOSA_ROOT}/autosa.tmp/output/
vivado_hls -f hls_script.tcl

You should see Passed printed out in your terminal showing that C simulation is performed successfully.

Fully-Connected Layer

In ${AUTOSA_ROOT}/autosa_tests/dnn_ops/kernel.h, uncomment the macro:

#define FC

Run the following command to generate a design with HLS host.

./autosa ./autosa_tests/dnn_ops/kernel.c \
--config=./autosa_config/autosa_config.json \
--target=autosa_hls_c \
--output-dir=./autosa.tmp/output \
--sa-sizes="{kernel[]->space_time[2];kernel[]->array_part[8,4];kernel[]->latency[4];kernel[]->simd[2]}" \
--simd-info=./autosa_tests/dnn_ops/fc_simd_info.json \
--host-serialize \
--no-reverse-order \
--simd-touch-space \
--local-reduce \
--reduce-op="+" \
--hls

This leads to a 2x2 systolic array. The figure below shows the array architecture.

../_images/fc.png

You will find all generated files under the directory ${AUTOSA_ROOT}/autosa.tmp/output/src. Copy the hls_script.tcl to the directory autosa.tmp/output.

cp ${AUTOSA_ROOT}/autosa_tests/dnn_ops/hls_script.tcl ${AUTOSA_ROOT}/autosa.tmp/output/

Run the TCL script to perform C simulation.

cd ${AUTOSA_ROOT}/autosa.tmp/output/
vivado_hls -f hls_script.tcl

You should see Passed printed out in your terminal showing that C simulation is performed successfully.

Discussion

Instead of generating three seperate systolic arrays for each operator, an ideal case would be using one systolic array to support all three operators at the same time. One of the solutions is to fuse the generated designs from AutoSA manually with proper code optimization. The other solution would be fusing the space loops during the polyhedral compilation, which is left as future work of AutoSA.
